02 January, 2013

The 2.2.1 release of psad is available for download. This release adds new support for detecting a type of scan that psad has been previously blind to - IP protocol scanning (nmap -sO). Also in this release is the ability to detect Topera IPv6 scans and differentiate them from Nmap IPv6 scans. Other important changes include a new test suite, email throttling, and auto blocking timeouts that can be set for each danger level. Here is the complete ChangeLog:

• Added IP protocol scan detection (nmap -sO). A new psad.conf variable PROTOCOL_SCAN_THRESHOLD defines the minimum number of different IP protocols (default = 5) that must be scanned before an alert is triggered.
• Added detection for Topera IPv6 scans when --log-ip-options is used in the ip6tables logging rule. When this option is not used, the previous psad-2.2 release detected Topera scans. An example TCP SYN packet generated by Topera when --log-ip-options is used looks like this (note the series of empty IP options strings "OPT ( )":

  Dec 20 20:10:40 rohan kernel: [  488.495776] DROP IN=eth0 OUT=
  MAC=00:1b:b9:76:9c:e4:00:13:46:3a:41:36:86:dd
  SRC=2012:1234:1234:0000:0000:0000:0000:0001
  DST=2012:1234:1234:0000:0000:0000:0000:0002 LEN=132 TC=0 HOPLIMIT=64
  FLOWLBL=0 OPT ( ) OPT ( ) OPT ( ) OPT ( ) OPT ( ) OPT ( ) OPT ( )
  OPT ( ) OPT ( ) PROTO=TCP SPT=61287 DPT=1 WINDOW=8192 RES=0x00 SYN
  URGP=0


• Bug fix in --Analyze mode when IP fields are to be searched with the --analysis-fields argument (such as --analysis-fields "SRC:1.2.3.4"). The bug was reported by Gregorio Narvaez, and looked like this:

  Use of uninitialized value $_[0] in length at
  ../../blib/lib/NetAddr/IP/UtilPP.pm (autosplit into
  ../../blib/lib/auto/NetAddr/IP/UtilPP/hasbits.al) line 126.
  Use of uninitialized value $_[0] in length at
  ../../blib/lib/NetAddr/IP/UtilPP.pm (autosplit into
  ../../blib/lib/auto/NetAddr/IP/UtilPP/hasbits.al) line 126.
  Bad argument length for NetAddr::IP::UtilPP::hasbits, is 0, should be
  128 at ../../blib/lib/NetAddr/IP/UtilPP.pm (autosplit into
  ../../blib/lib/auto/NetAddr/IP/UtilPP/_deadlen.al) line 122.


• Added --stdin argument to allow psad to collect iptables log data from STDIN in --Analyze mode. This makes it easier to run an iptables logs through psad from arbitrary files like so:

  # grep "IN=.*OUT=" /var/log/kern.log | psad -A --stdin


• Added the ability to acquire Snort rule 'msg' fields from fwsnort if it's also installed. A new variable FWSNORT_RULES_DIR tells psad where to look for the fwsnort rule set. This fixes a problem reported by Pui Edylie to the psad mailing list where fwsnort logged an attack that psad could not map back to a descriptive 'msg' field.
• Added the ability to set per-danger level timeouts when psad is configured to run in auto-blocking mode. These timeouts are implemented with new AUTO_BLOCK_DL*_TIMEOUT variables - one for each of the five possible danger levels that may be assigned to a scanning IP address.
• Added the ability to throttle emails generated by psad via a new EMAIL_THROTTLE variable which is implemented as a per-IP threshold. That is, if EMAIL_THROTTLE is set to "10", then psad will only send 1/10th as many emails for each scanning IP as it would have normally.

The complete psad-2.2.1 ChangeLog can also be found here via the psad gitweb interface.

22 December, 2012

The 1.6.3 release of fwsnort is available for download. This release adds a new test suite in the test/ directory that sends fwsnort through its paces for both iptables and ip6tables firewalls, speeds up iptables/ip6tables capabilities testing, and fixes a few bugs. In addition, one of the more significant changes is to ensure that Snort rules with HOME_NET=any -> EXTERNAL_NET=any are placed into the OUTPUT chain instead of the INPUT chain. This bug was reported by Dwight Davis. I would also like to thank Franck Joncourt for his support on the Debian side. Other changes were contributed by the open source community, and these are acknowledged in the complete fwsnort-1.6.3 ChangeLog below:

• Bug fix to ensure that !, <, >, and = chars in content strings are converted to the appropriate hex equivalents. All content strings with characters outside of [A-Za-z0-9] are now converted to hex-string format in their entirety. This should also fix an issue that results in the following error when running /var/lib/fwsnort/fwsnort.sh:

      Using intrapositioned negation (`--option ! this`) is deprecated in
      favor of extrapositioned (`! --option this`).  Bad argument `bm'
      Error occurred at line: 64
      Try `iptables-restore -h' or 'iptables-restore --help' for more information.
      Done.


• Bug fix to set default max string length in --no-ipt-test mode where iptables capabilities are not tested.
• (Andrew Merenbach) Bug fix to properly honor --exclude-regex filtering option.
• Added fwsnort test suite to the test/ directory. This mimics the test suites from the psad and fwknop projects, and it designed to examine many of the run time results of fwsnort.
• Added the ability to easily revert the fwsnort policy back to the original iptables policy with "/var/lib/fwsnort/fwsnort.sh -r". Note that this reverts back to the policy as it was when fwsnort itself was executed.
• Implemented a single unified function for iptables match parameter length testing, and optimized to drastically reduce run time for iptables capabilities checks (going from over 20 seconds to less than one second in some cases).
• (Dwight Davis) Contributed patches for several bugs including not handling --exclude-regex properly, not ignoring the deleted.rules file, not handling --strict mode operations correctly, and more. These issues and the corresponding patch were originally reported here: http://bugs.debian.org/cgi-bin/bugreport.cgi?bug=693000
• Bug fix for Snort rules with HOME_NET(any) -> EXTERNAL_NET(any) to ensure they go into the OUTPUT chain instead of the INPUT chain. This bug was reported by Dwight Davis.
• Updated to bundle the latest Emerging Threats rule set.

The complete fwsnort-1.6.3 ChangeLog can also be found here via the fwsnort gitweb interface.

09 December, 2012

The 2.0.4 release of fwknop is available for download. This release includes new support for fuzzing the SPA protocol powered by the perl FKO module along with a set of patches designed to break libfko in subtle ways, and also includes several bug fixes and small enhancements. Among the most important of these include a new check for fwknop chains on iptables firewalls after the initial fwknopd start up (so the fwknop chains can be deleted out from under the fwknop daemon without affecting SPA operations), and a new 'upstart' config for systems running the upstart daemon. Many other changes were contributed by the open source community, and these are acknowledged in the complete fwknop-2.0.4 ChangeLog below:

• [client] Misc fixes and the addition of save_args and last command (.fwknop.last) support on the Windows platform.
• [client] Fixed bug in username determination code where a valid value could be overrwritten in certain circumstances.
• [server] Added upstart config at extras/upstart/fwknop.conf. This allows the fwknopd to easily be managed with upstart via commands like "service fwknop start" and "service fwknop stop".
• [server] (Vlad Glagolev) Submitted a patch to fix ndbm/gdbm usage when --disable-file-cache is used for the autoconf configure script. This functionality was broken in be4193d734850fe60f14a26b547525ea0b9ce1e9 through improper handling of #define macros from --disable-file-cache.
• [server] (Vlad Glagolev) Submitted a patch to fix command exec mode under SPA message type validity test. Support for command exec mode was also added to the test suite.
• (Vlad Glagolev) Submitted an OpenBSD port for fwknop-2.0.3, and this has been checked in under the extras/openbsd/ directory.
• [server] Bug fix to allow GPG_ALLOW_NO_PW to result in not also having to specify a Rijndael key.
• [Android] Added new .properties files to allow the fwknop client to build and function properly on the latest Android release (4.1.2).
• [client] Added '-P udpraw' to allow the client to send SPA packets over UDP with a spoofed source IP address. This is in addition to the original 'tcpraw' and 'icmp' protocols that also support a spoofed source IP.
• [libfko] Bug fix to check b64_decode() return value to ensure that non-base64 encoded data is never used. Even though other validation routines checked decoded results, it is important to discard invalid data as early as possible. Note too that such invalid data would only be provided to b64_decode() after proper decryption, so the client must provide authentic SPA data.
• [libfko] Added validation of NAT access strings in the various NAT modes.
• [libfko] Restricted usernames embedded in SPA packets to be alpha-numeric along with "-" chars.
• [client] (Franck Joncourt) Contributed a patch to allow the fwknop client to be stopped during the password entry prompt with Ctrl-C before any SPA packet is sent on the wire.
• [client+server] Applied patch from Franck Joncourt to remove unnecessary chmod() call when creating client rc file and server replay cache file. The permissions are now set appropriately via open(), and at the same time this patch fixes a potential race condition since the previous code used fopen() followed by chmod().
• [server] Bug fix to accept SPA packets over ICMP if the fwknop client is executed with '-P icmp' and the user has the required privileges.
• [test suite] Applied patch from Franck Joncourt to have the perl FKO module link against libfko in the local directory (if it exists) so that it doesn't have to have libfko completely installed in the /usr/lib/ directory. This allows the test suite to run FKO tests without installing libfko.
• [test suite] Significant update to include a set of fuzzing SPA packets that are built using a patched version of libfko. These packets are located in the test/fuzzing/bogus_spa_packets file, and are designed to ensure proper validation of SPA packet data. This validation is performed in --enable-perl-module-checks mode via the perl FKO module.
• [client] Added --icmp-type and --icmp-code arguments so the user can control the icmp type/code combination for spoofed SPA packets ('-P icmp') mode.
• [client] Updated default TTL value to 64 for spoofed SPA packets. This is closer to more OS default TTL values than the previous 255.
• Updated build CFLAGS and LDFLAGS to conform to the Debian hardening-includes file for PIE support (e.g. '-fPIE' for CFLAGS and '-fPIE -pie' for LDFLAGS).
• [test suite] For GnuPG tests that require a passphrase associated with a gpg key, added a pinentry check to see if the local gpg engine requires it. If so, the gpg test that require a key are excluded since.
• [server] Added a new '--pcap-file <file>' option to allow pcap files to be processed directly by fwknopd instead of sniffing an interface. This feature is mostly intended for debugging purposes.
• [server] Added chain_exists() check to SPA rule creation so that if any of the fwknop chains are deleted out from under fwknopd they will be recreated on the fly. This mitigates scenarios where fwknopd might be started before a system level firewall policy is applied due to init script ordering, or if an iptables policy is re-applied without restarting fwknopd.

The complete fwknop-2.0.4 ChangeLog can also be found here via the fwknop gitweb interface.

04 September, 2012

The fwknop-2.0.3 release of fwknop is available for download. This is an important release that tightens up the code in several areas based on excellent research performed by Fernando Arnaboldi of IOActive. I wish to thank Fernando for this work, and also Erik Gomez of IOActive as well for making this research possible. Fernando's research turned up potential DoS and/or code execution vulnerabilities in the fwknopd server for malicious authenticated clients, insecure filesystem permissions handling, and more. All of these issues have been fixed in the 2.0.3 release.

Here is the complete fwknop-2.0.3 ChangeLog:

• [server] Fernando Arnaboldi from IOActive found several DoS/code execution vulnerabilities for malicious fwknop clients that manage to get past the authentication stage (so a such a client must be in possession of a valid access.conf encryption key). These vulnerabilities manifested themselves in the handling of malformed access requests, and both the fwknopd server code along with libfko now perform stronger input validation of access request data. These vulnerabilities affect pre-2.0.3 fwknop releases.
• [server] Fernando Arnaboldi from IOActive found a condition in which the server did not properly validate allow IP addresses from malicious authenticated clients. This has been fixed with stronger allow IP validation.
• [client+server] Fernando Arnaboldi from IOActive found that strict filesystem permissions for various fwknop files are not verified. Added warnings whenever permissions are not strict enough, and ensured that files created by the fwknop client and server are only set to user read/write.
• [client] Fernando Arnaboldi from IOActive found a local buffer overflow in --last processing with a maliciously constructed ~/.fwknop.run file. This has been fixed with proper validation of .fwknop.run arguments.
• [server] Fernando Arnaboldi from IOActive found several conditions in which the server did not properly throw out maliciously constructed variables in the access.conf file. This has been fixed along with new fuzzing tests in the test suite.
• [test suite] Added a new fuzzing capability to ensure proper server-side input validation. Fuzzing data is constructed with modified fwknop client code that is designed to emulate malicious behavior.
• Fixed RPM builds by including the $(DESTDIR) prefix for uninstall-local and install-exec-hook stages in Makefile.am.

The fwknop-2.0.3 ChangeLog can also be found here via the fwknop gitweb interface.

18 August, 2012

The fwknop-2.0.2 release of fwknop is available for download. This release includes new support for SPA using GPG keys in automated environments, and this particularly affects fwknopd server deployments on systems where the GnuPG engine seems to require gpg-agent or pinentry for passphrase entry associated with GnuPG keys. In addition, a couple of important bug fixes were made to ensure replay attack detection is properly done when SPA packet prefixes are added/removed (this is done to increase the difficulty of using Snort or other IDS to detection SPA packets on the wire).

Here is the complete fwknop-2.0.2 ChangeLog:

• [server] For GPG mode, added a new access.conf variable "GPG_ALLOW_NO_PW" to make it possible to leverage a server-side GPG key pair that has no associated password. This comes in handy when a system requires the user to leverage gpg-agent / pinentry which can present a problem in automated environments as required by the fwknopd server. Now, it might seem like a problem to remove the passphrase from a GPG key pair, but it's important to note that simply doing this is little worse than storing the passphrase in the clear on disk anyway in the access.conf file. Further, this link helps provide additional detail:

  http://www.gnupg.org/faq/GnuPG-FAQ.html#how-can-i-use-gnupg-in-an-automated-environment


• [client] In IP resolution mode (-R) changed HTTP connection type to 'close' since there is no need for connection persistence, and indeed the client expects to just get the IP and the connection to be closed. Jonathan Schulz submitted a patch for this.
• [client] Bug fix to ensure that all data is read via recv() from a remote webserver IP resolution mode (-R). Previously IP resolution could fail if HTTP headers were transferred separately from the data (for whatever reason). Jonathan Schulz submitted a patch for this.
• [client] Added backup check against a cipherdyne.com 'myip' cgi instance in -R mode if the normal check against cipherdyne.org fails.
• [server] Bug fix to implement FLUSH_IPT_AT_INIT and FLUSH_IPT_AT_EXIT functionality. These are enabled by default, and now iptables rules added by fwknopd can be made persistant by setting these variables to "N" in the fwknopd.conf file (this is not a recommended setting however).
• [server] Added FLUSH_IPFW_AT_INIT and FLUSH_IPFW_AT_EXIT for ipfw firewalls to emulate the corresponding functionality that is implemented for iptables firewalls. This was suggested by Jonathan Schulz.
• [server] Replay attack bug fix to ensure that an attacker cannot force a replay attack by intercepting an SPA packet and the replaying it with the base64 version of "Salted__" (for Rindael) or the "hQ" prefix (for GnuPG). This is an important fix. The following comment was added into the fwknopd code:



  /* Ignore any SPA packets that contain the Rijndael or GnuPG prefixes
   * since an attacker might have tacked them on to a previously seen
   * SPA packet in an attempt to get past the replay check.  And, we're
   * no worse off since a legitimate SPA packet that happens to include
   * a prefix after the outer one is stripped off won't decrypt properly
   * anyway because libfko would not add a new one.
  */


• [server] Fixed a memory leak bug in the replay attack detection code. The leak was found with the test suite in --enable-valgrind mode, and here is the valgrind trace that exposed it:



  44 bytes in 1 blocks are definitely lost in loss record 2 of 2
     at 0x482BE68: malloc (in
     /usr/lib/valgrind/vgpreload_memcheck-x86-linux.so)
     by 0x490EA50: strdup (strdup.c:43)
     by 0x10CD69: incoming_spa (incoming_spa.c:162)
     by 0x10E000: process_packet (process_packet.c:200)
     by 0x4862E63: ??? (in /usr/lib/i386-linux-gnu/libpcap.so.1.1.1)
     by 0x4865667: pcap_dispatch (in /usr/lib/i386-linux-gnu/libpcap.so.1.1.1)
     by 0x10DABF: pcap_capture (pcap_capture.c:226)
     by 0x10A798: main (fwknopd.c:299)


• [test suite] Added GPG tests for keyrings that have no associated passphrases.
• [server] Implemented a new check to ensure that the iptables 'comment' match exists to ensure the proper environment for fwknopd operations. This check is controlled by the new ENABLE_IPT_COMMENT_CHECK variable, and was suggested by Hank Leininger.
• [server] 'make install' fix to ensure restrictive permissions on the /etc/fwknop/ directory and /etc/fwknop/* files. Also updated the 'make install' step to not overwrite any existing config files in /etc/fwknop/ and instead install new copies from the source tree at /etc/fwknop/fwknopd.conf.inst and /etc/fwknop/access.conf.inst

The complete fwknop-2.0.2 ChangeLog can be found here via the fwknop gitweb interface.

24 July, 2012

The fwknop-2.0.1 release is fwknop is available for download. This is mainly a bug fix release before the new HMAC-SHA256 work is ready for general consumption. A couple of the fixes are important for PF users on OpenBSD and for people who use the same encryption key within multiple access stanzas.

Here is the complete fwknop-2.0.1 ChangeLog:

• [server] Bug fix where the same encryption key used for two stanzas in the access.conf file would result in access requests that matched the second stanza to always be treated as a replay attack. This has been fixed for the fwknop-2.0.1 release, and was reported by Andy Rowland. Now the fwknopd server computes the SHA256 digest of raw incoming payload data before decryption, and compares this against all previous hashes. Previous to this commit, fwknopd would add a new hash to the replay digest list right after the first access.conf stanza match, so when SPA packet data matched the second access.conf stanza a matching replay digest would already be there.
• [server] Updated PCAP_LOOP_SLEEP default to 1/10th of a second (in microseconds). This was supposed to be the default anyway, but C Anthony Risinger reported a bug where fwknopd was consuming more resources than necessary, and the cause was PCAP_LOOP_SLEEP set by default to 1/100th of a second - this has been fixed.
• [libfko] Added SPA message validation calls to fko decoding routines to help ensure that SPA messages conform to expected values.
• Bug fix for PF firewalls: updated the PF anchor check to not rely on listing the PF policy - fwknopd now uses 'pfctl -s Anchor' instead.
• [test suite] Added parsing of valgrind output to produce a listing of functions that have been flagged - this assists in the development process to ensure that fwknop is not leaking memory.
• [test suite] Bug fix on Mac OS X systems to account for libfko.dylib path instead of libfko.so. This fixes the existence check for libfko.
• [test suite] Added tests for --nat-local mode.
• [client] Fixed several minor memory leaks caught by valgrind.
• [libfko] Minor gcc warning fix: fko_decode.c:43:17: warning: variable ‘edata_size’ set but not used [-Wunused-but-set-variable].
• Updated fwknopd init script for Debian systems (contributed by Franck Joncourt).

The complete fwknop-2.0.1 ChangeLog can be found here via the fwknop gitweb interface.

28 April, 2012

The 1.6.2 release of fwsnort is available for download. The most impactful change in this release is a switch to how fwsnort loads translated rules into the running iptables policy. Instead of attempting to parse the local policy and only add those rules in that appear to match protocols that the policy allows, fwsnort now loads all translated rules by default. The reasoning for this change is in the ChangeLog below. There are a few bug fixes and updates to get fwsnort working without warnings on recent versions of perl as well as an ICMP type fix for recent versions of iptables. As usual, please let me know if there are any issues.

Here is the complete fwsnort-1.6.2 ChangeLog:

• Switched --no-ipt-sync to default to not syncing with the iptables policy. By default fwsnort attempts to match translated Snort rules to the running iptables policy, but this is tough to do well because iptables policies can be complex. And, before fwsnort switched to the iptables-save format for instantiating the policy, a large set of translated rules could take a really long time to make active within the kernel. Finally, many Snort rules restrict themselves to established TCP connections anyway, and if a restrictive policy doesn't allow connections to get into the established state for some port let's say, then there is little harm in having translated Snort rules for this port. Some kernel memory would be wasted (small), but no performance would be lost since packets won't be processed against these rules anyway. The end result is that the default behavior is now to not sync with the local iptables policy in favor of translating and instantiating as many rules as possible.
• Replaced Net::IPv4Addr with the excellent NetAddr::IP module which has comprehensive support for IPv6 address network parsing and comparisons.
• Moved the fwsnort.sh script and associated files into the /var/lib/fwsnort/ directory. This was suggested by Peter Vrabec.
• Bug fix for recent versions of iptables (such as 1.4.12) where the icmp match requires --icmp-type to be set - some Snort rules look for a string to match in icmp traffic, but don't also specify an icmp type.
• Bug fix for 'qw(...) usage as parenthesis' warnings for perl > 5.14
• Removed the ExtUtils::MakeMaker RPM build requirement from the fwsnort.spec file. This is a compromise which will allow the fwsnort RPM to be built even if RPM doesn't or can't see that ExtUtils::MakeMaker is installed - most likely it will build anyway. If it doesn't, there are bigger problems since fwsnort is written in perl. If you want to build the fwsnort RPM with a .spec file that requires ExtUtils::MakeMaker, then use the "fwsnort-require-makemaker.spec" file that is bundled in the fwsnort sources.

21 April, 2012

After a long development cycle, the 2.2 release of psad is available for download. This release adds major new functionality for the detection of malicious traffic that is delivered over IPv6 by parsing ip6tables logs. A significant portion of this capability is enabled by the excellent NetAddr::IP CPAN module that can properly handle IPv6 addresses. In addition, speed optimizations have been made that result in psad-2.2 being about 15% faster than previous releases, several bugs have been fixed (including one that caused compile time warnings on recent versions of perl), and a comprehensive test suite has been added. psad-2.2 is a stepping stone to the upcoming psad-3.0 release that will include support for both PF and ipfw firewalls running on *BSD systems. Quite a bit of this work has already been done in the openbsd_integration branch.

Here is an excerpt of the psad-2.2 ChangeLog:

• Added support for detection of malicious traffic that is delivered via IPv6. This is accomplished by parsing ip6tables log messages - these are in a slightly different format than the iptables log messages. Here is an example:

  Mar 17 13:39:13 linux kernel: [956932.483644] DROP IN=eth0 OUT= MAC=00:13:46:3a:41:36:00:1b:b9:76:9c:e4:86:dd SRC=2001:0db8:0000:f101:0000:0000:0000:0002 DST=2001:0db8:0000:f101:0000:0000:0000:0001 LEN=80 TC=0 HOPLIMIT=64 FLOWLBL=0 PROTO=TCP SPT=50326 DPT=993 WINDOW=5760 RES=0x00 SYN URGP=0

  Detection of malicious IPv6 traffic can be disabled via a new ENABLE_IPV6_DETECTION config variable.
• For ICMP6 traffic, added protocol validation for ICMP6 type/code combinations.
• Added a new test suite in the test/ directory to validate psad run time operations (scan detection, signature matching, and more). To support this, a new '--install-test-dir' option was added to the install.pl script. Once this is executed, the test suite can be run via the test-psad.pl script in the test/ directory.
• Added a new MAX_SCAN_IP_PAIRS config variable to allow psad memory usage to be constrained by restricting the number of unique IP pairs that psad This is useful for when psad is deployed on systems with little memory, and is best utilized in conjunction with disabling ENABLE_PERSISTENCE so that old scans will also be deleted (and thereby making room for tracking new scans under the MAX_SCAN_IP_PAIRS threshold).
• Bug fix for 'qw(...) usage as parenthesis' warnings for perl > 5.14
• Bug fix that caused psad to emit the following:

  Undefined subroutine &main::LOG_DAEMON called at ./psad line 10071.

  This problem was noticed by Robert and reported on the psad mailing list.
• Bug fix for ICMP packet handling where psad would incorrectly interpret ICMP port unreachable messages as UDP packets because the UDP specifics are included in the iptables log message. This bug was first reported by Lukas Baxa to the Debian maintainers and was followed up by Franck Joncourt: http://bugs.debian.org/cgi-bin/bugreport.cgi?bug=596240 An example ICMP log message that exposed the bug is included below:

  Sep 8 18:04:26 baxic kernel: [28241.572876] IN_DROP IN=wlan0 OUT= MAC=00:1a:9f:91:df:ae:00:21:27:e8:0a:a0:08:00 SRC=10.0.0.138 DST=192.168.1.103 LEN=96 TOS=0x00 PREC=0xC0 TTL=254 ID=63642 PROTO=ICMP TYPE=3 CODE=3 [SRC=192.168.1.103 DST=10.0.0.138 LEN=68 TOS=0x00 PREC=0x00 TTL=0 ID=22458 PROTO=UDP SPT=35080 DPT=33434 LEN=48 ]

The complete psad-2.2 ChangeLog can be found here via the psad gitweb interface.

02 January, 2012

After a long development cycle, fwknop-2.0 has been released. This is the first production release of the fully re-written C version of fwknop, and is the culmination of an effort to provide Single Packet Authorization to multiple open source firewalls, embedded systems, mobile devices, and more. On the "server" side, supported firewalls now include iptables on Linux, ipfw on FreeBSD and Mac OS X, and pf on OpenBSD. The fwknop client is known to run on all of these platforms, and also functions on Windows systems running under Cygwin. There is also an Android client, and a good start on a iPhone client as well. On a personal note, I wish to thank Damien Stuart for a heroic effort to port most of the original perl code over to C. Also, several other people have made significant contributions including Jonathan Bennet, Max Kastanas, Sebastien Jeanquier, Ozmart, and others. If there are any issues, please get in touch with me directly or send an email to the fwknop mailing list.

Update 01/03: Both libfko library that powers much of fwknop operations and the fwknop client can be compiled as native Windows executables. In addition, there are perl and python bindings to libfko as well.

Update 01/07: Damien Stuart has built RPM files for fwknop on RHEL5, RHEL6, Fedora 15, 16, and 17 and for other architectures the Fedora koji build system can produce.

11 December, 2011

The 2.0rc5 candidate release of fwknop is available for download. There may be a few tweaks to the code before the official 2.0 release is made, but this is pretty close as-is. Significant development work has gone into fwknop since the 2.0rc4 release, and adds some major new functionality as well as fixing a few bugs. Here is a summary of the changes:

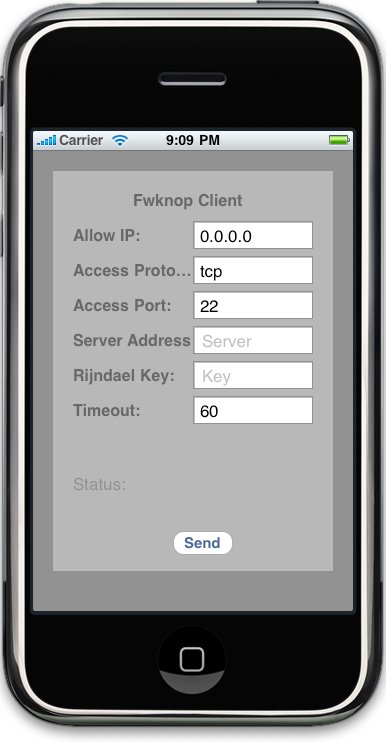

iPhone fwknop client: Max Kastanas has contributed an iPhone port of the fwknop client. He had already contributed on Android client, so the iPhone was the next natural step! We're looking for a maintainer of the iPhone code so that eventually it can be made available through the App Store. If you have iPhone development experience and are interested in taking this on, please contact me.

PF firewall support on OpenBSD: For quite a while now fwknop has brought Single Packet Authorization support to iptables firewalls on Linux and ipfw firewalls on FreeBSD and Mac OS X systems. The 2.0rc5 release now introduces support for the PF firewall on OpenBSD systems. By interfacing with the pfctl command, fwknop creates new rules to access a protected service (such as SSHD) to a PF anchor. Rules are deleted out of a running anchor with pfctl -a <anchor> -f - with the expired rule(s) removed. There is support in the fwknop test suite (see the test/ directory in the fwknop-2.0rc5 sources) to validate fwknop operations on OpenBSD systems, and if there are any issues please let me know.

Expiring SPA keys: With large SPA deployments where many different encryption keys - either Rijndael or GPG keys - are used to service lots of external users, key management can become somewhat of a burden. This feature allows an expiration date to be set in the access.conf file on a per-key basis. Any SPA packet received for an expired key is ignored by fwknopd. This feature was suggested by ozmart from the fwknop mailing list.

FORCE_NAT mode: For iptables firewalls, a new FORCE_NAT mode has been implemented that works as follows: for any valid SPA packet, force the requested connection to be NAT'd through to the specified (usually internal) IP and port value. This is useful if there are multiple internal systems running a service such as SSHD, and you want to give transparent access to only one internal system for each stanza in the access.conf file. This way, multiple external users can each directly access only one internal system per SPA key.

lsof launcher: The fwknop lsof launcher (extras/fwknop-launcher/fwknop-launcher-lsof.pl) is a lightweight daemon that allows the user to not have to manually run the fwknop client when attempting to gain access to a service that is protected by via fwknopd. This is accomplished by checking the output of lsof to look for pending connections in the SYN_SENT state, which (usually) indicate that a remote firewall is blocking the attempted connection. At this point, the launcher executes the fwknop client with the --get-key arg (so the user must place the key in the local filesystem) to generate an SPA packet for the attempted connection. The remote fwknopd daemon will reconfigure the firewall to allow temporary access, and this usually happens fast enough that the original connection attempt will then succeed as TCP retries to establish the connection. The idea for this was originally for a pcap-based connection watcher by Sebastien Jeanquier.

Several other changes and small fixes have been made as well. The fwknop test suite supports running all tests through the excellent valgrind project, and this enabled several memory handling issues to be found and corrected.

fwknop is released under the GPL version 2, and the complete fwknop-2.0rc5 ChangeLog can be found here via the fwknop gitweb interface.
